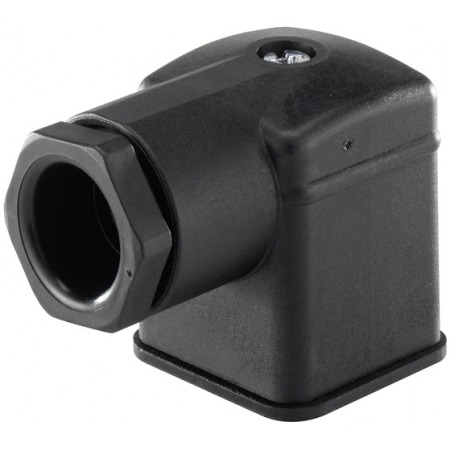

Connector 0-250V AC/DC (DIN – A) – Burkert 2518 314802
Specifications:
-
Voltage info: 0-250 V AC/DC
-
Seal material info: NBR (nitrile rubber)
-
Approval: UL certification
-
Electrical connection info: DIN-A
-
Material info:Polyamide (PA)
-
Voltage-type: AC/DC
-
Nominal current (A): 10
-
Temperature (°C): -30 °C to 90 °C
-
Height (mm): 41314802Burkert
Description
This Burkert 2518 connector is suitable for a DIN EN 175301-803 Form A (previously DIN 43650) connection, but simply referred to as a DIN-A connection. DIN-A connectors are also called “sugar cube connectors” or “MPM”. The Form A refers to the distance between the pins, which is 18mm. It is rated for 0..250V AC/DC, 10A, and suitable for an ambient temperature range of -30..90⁰C. It is modular, compact, IP65 certified, connects the wires at a 90⁰ angle, allows for fast assembly and reduced integration time. This version comes with a steel mounting screw and as standard has an earth ground connection point. This cable plug has 2-pins and comes with no additional circuitry.
