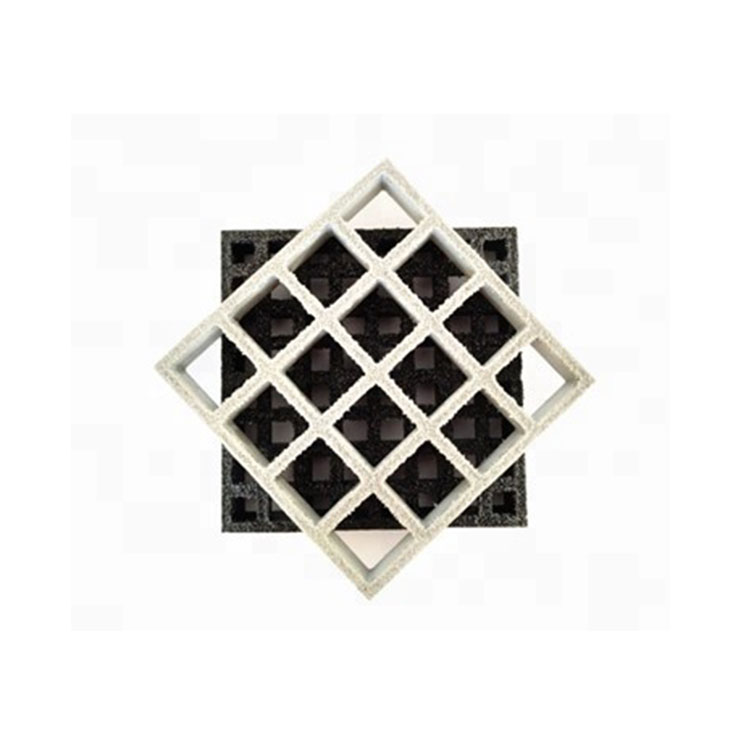

Fiberglass Molded Grating

Specifications:

The product is composed of fiberglass, this is the major component of the fiberglass molded grating. Its numerous significant features are the reasons why it is highly preferred. The next component is the resins. This resin solution can be of two types.

Polyester

Vinyl Ester

The polyester provides excellent corrosion resistance to the woven fiberglass while Vinyl ester provides the highest level of corrosion resistance.

Fiberglass Molded Grating Specification
Mesh Size(mm) Thickness (mm) Bar Thickness(mm) Standard Panel Size(mm)
38×38 13 6.0/5.0 1220×3660,1220×4000,1220×2440,921×3055
14 6.0/5.0 1220×3660,1220×4000,1220×2440,921×3055
15 6.0/5.0 1220×3660,1220×4000,1220×2440
20 6.0/5.0 1220×3660,1220×4000,1524×4010,997×3012
25 6.5/5.0 1220×3660,1226×4010,1524×4000,1530×4010,1997×3012
30 6.5/5.0 1220×3660,1220×4010,1524×4010,921×3055
38 7.0/5.0 1220×3660,1220×4010,2100×4240,998×4010,1220×2440,921×3055,1530×4010
50 9.5/7.5 1220×4010,1220×3666,1230×4010,1220×2440,921×3055
60 10.5/8.5 1230×4010
70 11.0/9.0 1230×4010
40×40 25 7.0/5.0 1007×3007,1007×4007,1247×4047,1527×4047
30 7.0/5.0 1527×4047,1007×3007,1247×4047
38 7.0/5.0 1527×4047,1247×4047,1007×3007,1007×4047
40 7.0/5.0 1527×4047,1007×3007,1007×4047,1247×4047
50×50 15 6.0/5.0 1228×4020,1220×3660,1220×2440
40 6.8/5.0 1787×4530,1225×4530
25 7.0/6.0 1220×3660,1226×4020,1220×2440,915×3050
50 8.0/6.0 1524×4000,1220×3660,1220×2440,1220×4000
83×83 38 7.0/5.0 1007×4007,1007×3007,1007×4255
40 7.0/5.0 1007×4007,1007×3007,1007×4255

Features:

Frp moldings are very lightweight.

This feature makes them very easy to install and transport from one place to another.

They have high corrosion resistance.

Their high level of resistance to corrosion makes them the idle material for being used to make mainframes and in water treatment plants.

Frp molded gratings are very hard to break.

No truck or human passing on them is heavier enough to break them. It is one of the best features they possess.

Description

Fiberglass molded grating is one of the most durable panels that is created by carefully laying continuous fiberglass in vertical and horizontal positions, molded then passed in the intense resin solution and finally woven to produce the best mesh panels called frp molded gratings

These products are known to be very durable, slip resistant and impact resistance making them very capable of holding any amount of weight without bending or breaking. They come in multiple colors to suit whatever purpose they will be used for.

Having a wide range of features like different depths and sizes, they tend to have a variety of uses. They are mostly used in making skid free tracks in industries, companies or public walkways where the floor is slippery.

This helps in minimizing slip-related falls and the resultant injuries either while working or walking. With frp fitted on the floor, there will be no fall cases reported or compensations made to works with fall-related injuries.

They can also be used on stairways of both commercial and residential buildings where there are very high chances of slipping.

They are also used by the IT experts in the creation of protective housing to hold some of the most fragile equipment like mainframes.
