Description

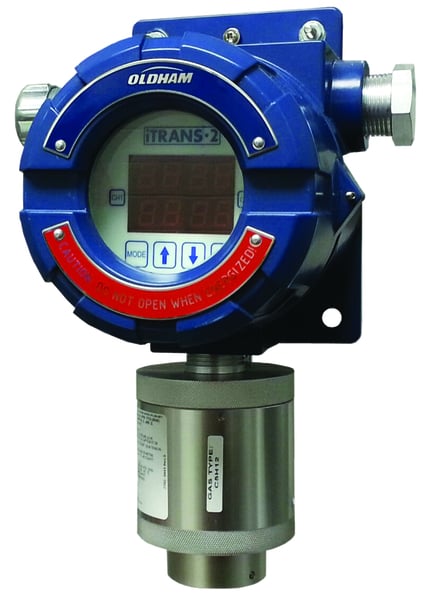

The Oldham iTrans 2 can simultaneously monitor two gases with both readings shown on a dual-channel split-screen LED display. Two integral or remote sensors can be fitted. Single sensor operation is also possible. Offering flexibility and limiting installation costs by reducing the number of transmitters required.
A fixed-point gas detector for flammable and toxic gases, accepting infrared, catalytic bead or electrochemical sensors.
Sensors are pre-calibrated, utilising smart sensor technology, enabling automatic sensor recognition and data transfer. Sensor life data can be accessed and displayed automatically after each calibration.
With relay options available, i-trans 2 can act as a standalone system activating alarms, shutting down equipment in the event of a hazard, and removing the need for cabling to a central controller. The transmitter can also operate in tandem with other detectors as part of a system.
Supplied with analogue 4-20mA and digital RS-485 Modbus (9600 baud) outputs. HART is optional, enabling remote communication across the 4-20mA signal for maintenance, commissioning and calibration.
