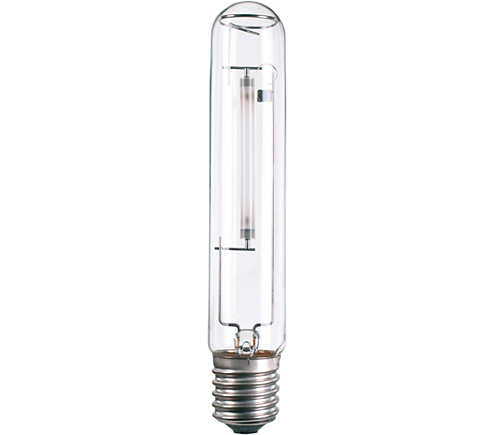

SON-T 250W E E40 SL/12
Specifications:
General information
| Cap base |
E40 [ E40]
|
| Burning Position |
UNIVERSAL [ Any/Universal]
|
| Life to 5% failures (nom.) |
12000 h
|
| Life to 20% failures (nom.) |
20000 h
|
| Life to 50% failures (nom.) |
28000 h
|
| System description |
External Ignitor
|
Light technical
| Colour Code |
220 [ CCT of 2,000 K]
|
| Lamp Luminous Flux (Min) |
25200 lm
|
| Lamp Luminous Flux (Nom) |
28000 lm
|
| Lumen maintenance 2,000 hours (min.) |
95 %
|
| Lumen maintenance 2,000 hours (nom.) |
98 %
|
| Lumen maintenance 5,000 hours (min.) |
92 %
|
| Lumen maintenance 5,000 hours (nom.) |
96 %
|
| Colour Temperature, horizontal (Nom) |
2000 K
|
| Lamp Luminous Efficacy EM (Nom) |
110 lm/W
|
| Colour Rendering Index,horiz (Max) |
25
|
| Colour Rendering Index,horiz (Nom) |
–
|
Operating and electrical
| Technical Lamp Power (Nom) |
250.0 W
|
| Lamp current (EM) (nom.) |
3 A
|
| Ignition supply voltage (max.) |
198 V
|
| Ignition peak voltage (max.) |
2800 V
|
| Re-ignition time (min.) (max.) |
120 s
|
| Ignition time (max.) |
5 s
|
| Voltage (max.) |
115 V
|
| Voltage (min.) |
85 V
|
| Voltage (nom.) |
100 V
|
Controls and dimming
| Dimmable |
Yes
|
| Run-up time 90% (max.) |
5 min
|
Mechanical and housing
| Lamp Finish |
Clear
|
| Cap-base information |
–
|
| Bulb shape |
T46 [ T 46 mm]
|
Approval and application
| Mercury (Hg) content (nom.) |
20.4 mg
|
| Energy consumption kWh/1,000 hours |
275 kWh
|
Luminaire design requirements
| Bulb temperature (max.) |
450 °C
|
| Cap-base temperature (max.) |
250 °C
|
| Cap-Base Temperature (Max)-DUP(do not use) |
482 °F
|
Product data
| Full product code |
871829121288100
|
| Order product name |
SON-T 250W E E40 SL/12
|
| EAN/UPC – product |
8718291212881
|
| Order code |
928487200098
|
| SAP numerator – quantity per pack |
1
|
| Numerator – packs per outer box |
12
|
| SAP material |
928487200098
|
| Net Weight (Piece) |
0.137 kg
|
