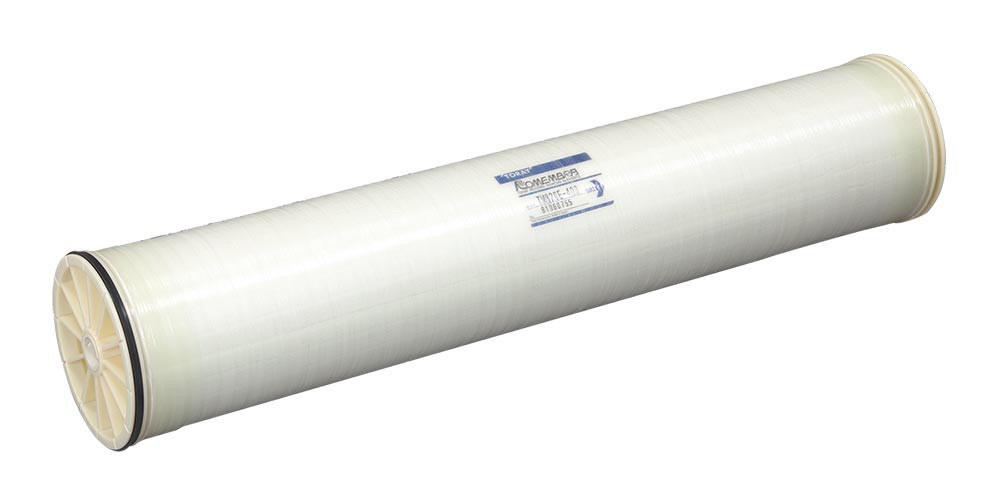

Toray TM820M-400 Membrane
Specifications:
- Maximum Operating Pressure: 1200psi (8.3 MPa)
- Maximum Feed Water Temperature: 113°F (45°C)
- Maximum Feed Water SDI15: 5
- Feed Water Chlorine Concentration: <0.1ppm
- Feed Water pH Range, Continuous Operation: 2-11
- Feed Water pH Range, Chemical Cleaning: 1-12
- Maximum Pressure Drop per Element: 15 psi (0.10 MPa)
- Maximum Pressure Drop per Vessel: 50 psi (0.34 MPa)
| Type | DiameterInch | Membrane Area ft² (m²) | Salt Rejection% | Product Flow Rate gpd(m³/d) | Feed Spacer Thickness mil |
| TM820M-400 | 8” | 400 (37) | 99.8 | 7,000(26.5) | 34 |
