Description

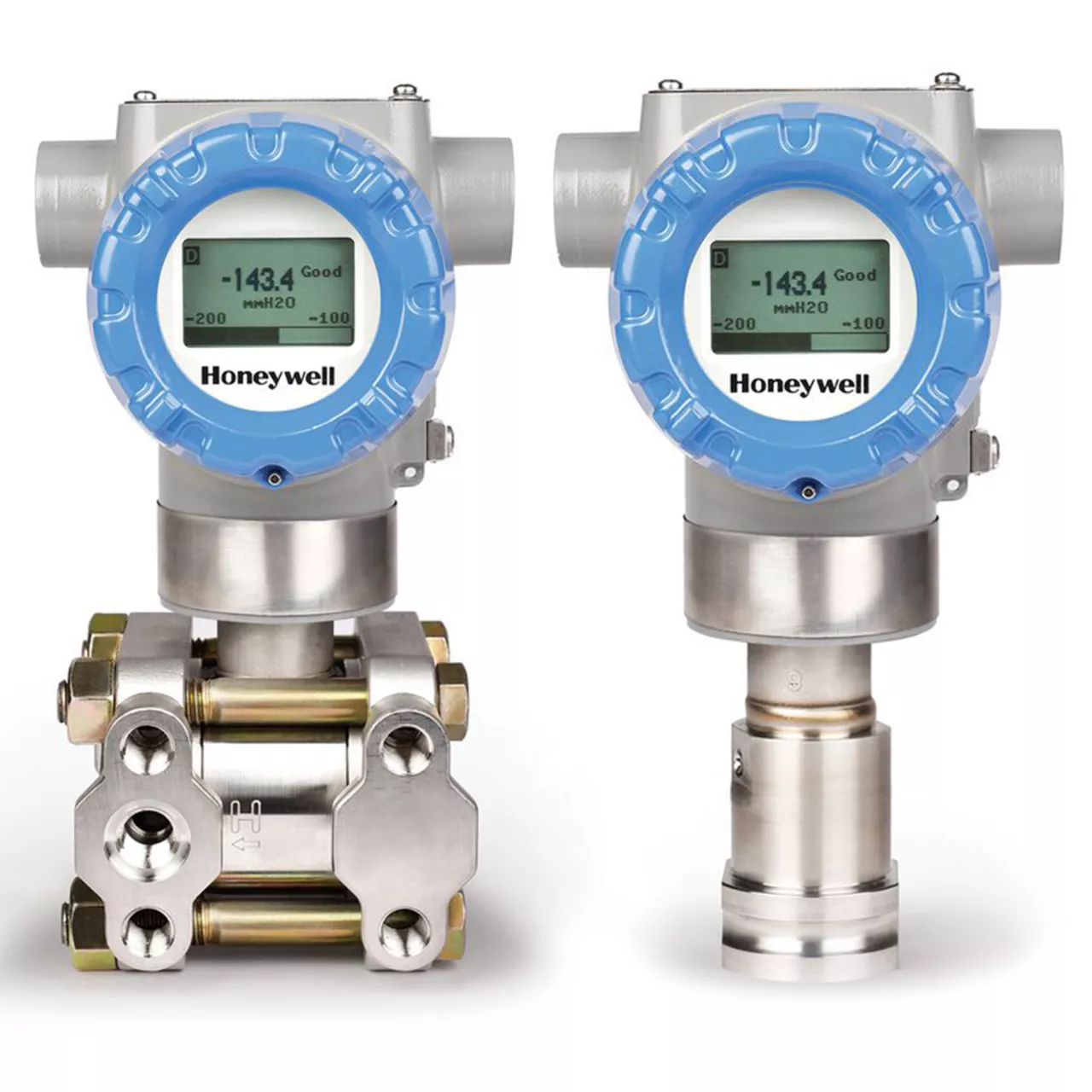

SmartLine® ST800 Gauge Pressure Transmitters offer exceptional performance and are ideal for high-pressure measurements in boilers and fuel feeds, and tank level measurement applications with a relatively high process temperature.
SmartLine STG800 – Gauge Pressure
ST800 Dual Head Gauge Pressure Transmitters are suited for applications requiring small flange or 1/2” NPT connections. Typical applications include gauge pressure measurement of reaction vessels in the chemical industry and level applications with process temperatures of up to 302°F /150°C.In-Line transmitters are screwed directly onto a 1/2” male NPT nipple and can be installed in hazardous environments for accurate, repeatable pressure measurement. Typical applications include high-pressure measurement in boilers, fuel feeds and high-pressure reaction vessels in the petrochemical and hydrocarbon recovery industries.The following models are available:
| Model | Range(psi) | Range(Bar) |
| STG830/STG83L | 0-50 | 0-3.5 |
| STG840/STG84L | 0-500 | 0-35 |
| STG870/STG87L | 0-3,000 | 0-210 |
| STG88L | 0-6,000 | 0-415 |
| STG89L | 0-10,000 | 0-690 |
